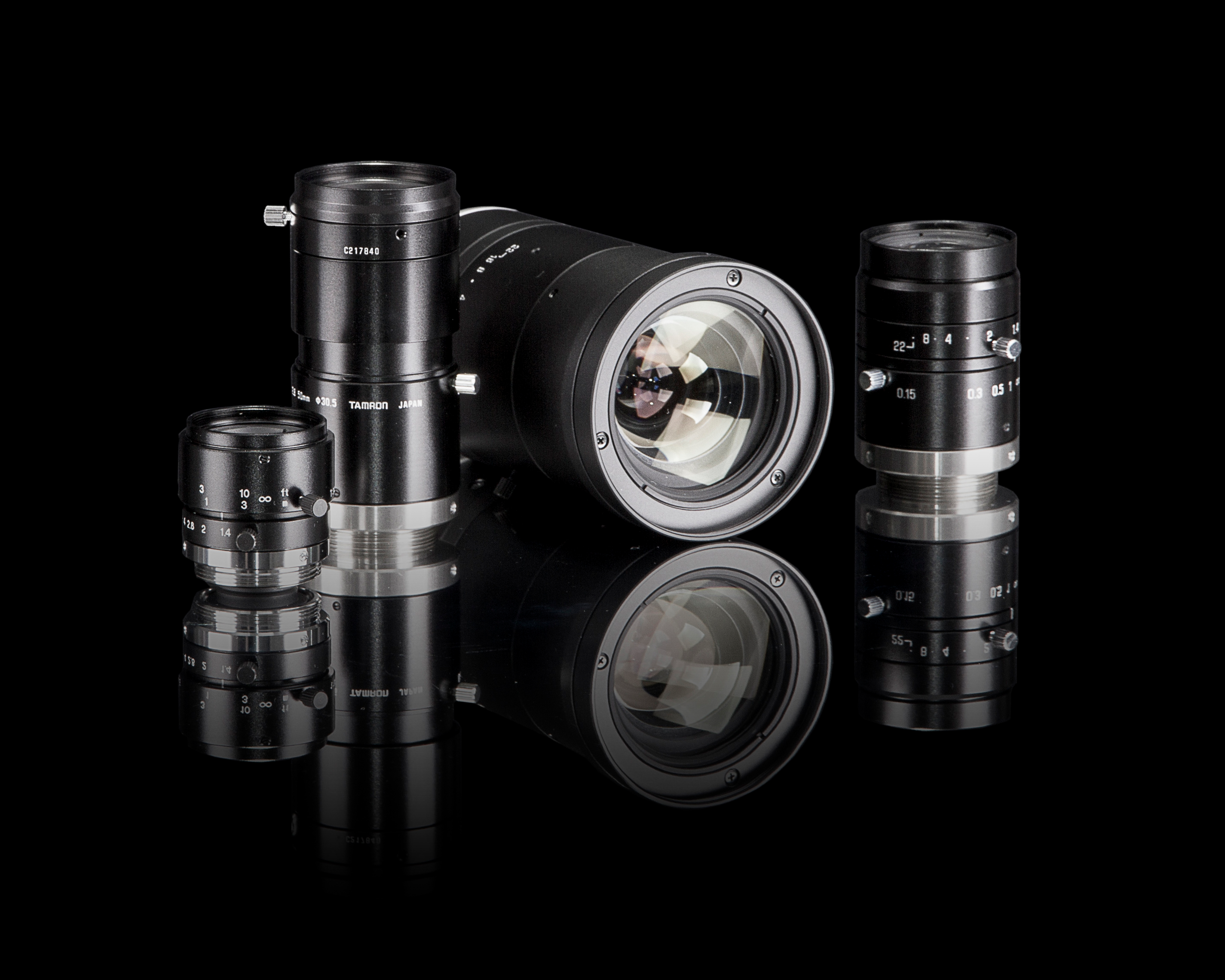

Various fixed focal length and fixed aperture lenses are available for the LMK. Furthermore, these lenses can be supplied with a fixed or manually adjustable focus.
The range includes the following focal lengths: f' = 8 mm, 12 mm, 15 mm, 16 mm, 25 mm, 50 mm, 80 mm, 100 mm, 150 mm
Depending on the customer's requirements, these lenses can be defined before calibration and delivery by specifying the focus range and/or the f-number.
If a manually focusable lens is used calibrated for a variable measuring distance, this is taken into account in the user software with extended factors for the current focus setting of the lens.
Click on the corresponding LMK model below to get specific information about measuring distance and field angle, which varies between camera models.
Manual lenses for the LMK 6-5
There are various fixed focal length and fixed aperture lenses available for the LMK 6-5. In addition, these lenses can be delivered either with a fixed or manually adjustable focus.
The range includes the following focal lengths: f' = 8 mm, 12 mm, 16 mm, 25 mm, 50 mm, 80 mm, and 150 mm.
Depending on customer requirements, these lenses can be defined prior to calibration and delivery by specifying the focus range and/or f-number.
When a manually focusable lens is used for a variable measuring distance, this is taken into account in the user software with extended factors for the current focus setting of the lens.
| Lens type | TT 8 | TT 12 | TT 16 | TT 25 | TT 50 | TT 80 | TT 150 |
|---|---|---|---|---|---|---|---|
| Focus type | manual focus | manual focus | manual focus | manual focus | manual focus | manual focus | manual focus |
| Focal length | 8 mm | 12 mm | 16 mm | 25 mm | 50 mm | 80 mm | 150 mm |
| Measuring distance | > 300 mm | > 300 mm | > 300 mm | > 230 mm | > 280 mm | > 300 mm | > 1100 mm |
| Field of view (H × V) | ≈ 57° × 44° | ≈ 40° × 30° | ≈ 30° × 23° | ≈ 19° × 15° | ≈ 10° × 7° | ≈ 6.3° × 4.7° | ≈ 3.3° × 2.5° |
| Lens length | 40 mm | 40 mm | 40 mm | 50 mm | 65 mm | 117 mm | 155 mm |
| Lens | |
|---|---|
| TT 8 | Focus type: manual focus |
| TT 12 | Focus type: manual focus Focal length: 12 mm Measuring distance: > 300 mm Field of view (H × V): ≈ 40° × 30° Lens length: 40 mm |
| TT 16 | Focus type: manual focus Focal length: 16 mm Measuring distance: > 300 mm Field of view (H × V): ≈ 30° × 23° Lens length: 40 mm |
| TT 25 | Focus type: manual focus Focal length: 25 mm Measuring distance: > 230 mm Field of view (H × V): ≈ 19° × 15° Lens length: 50 mm |
| TT 50 | Focus type: manual focus Focal length: 50 mm Measuring distance: > 280 mm Field of view (H × V): ≈ 10° × 7° Lens length: 65 mm |
| TT 80 | Focus type: manual focus Focal length: 80 mm Measuring distance: > 300 mm Field of view (H × V): ≈ 6.3° × 4.7° Lens length: 117 mm |
| TT 150 | Focus type: manual focus Focal length: 150 mm Measuring distance: > 1100 mm Field of view (H × V): ≈ 3.3° × 2.5° Lens length: 155 mm |
Manual lenses for the LMK 6-12
There are various fixed focal length and fixed aperture lenses available for the LMK 6-12. In addition, these lenses can be delivered either with a fixed or manually adjustable focus.
The range includes the following focal lengths: f' = 8 mm, 16 mm, 25 mm, 50 mm, 80 mm, and 150 mm.
Depending on customer requirements, these lenses can be defined prior to calibration and delivery by specifying the focus range and/or f-number.
When a manually focusable lens is used for a variable measuring distance, this is taken into account in the user software with extended factors for the current focus setting of the lens.
| Lens type | TT 8 | TT 16 | TT 25 | TT 50 | TT 80 | TT 150 |
|---|---|---|---|---|---|---|
| Focus type | manual focus | manual focus | manual focus | manual focus | manual focus | manual focus |
| Focal length | 8 mm | 16 mm | 25 mm | 50 mm | 80 mm | 150 mm |
| Measuring distance | > 155 mm | > 200 mm | > 262 mm | > 424 mm | > 428 mm | > 1180 mm |
| Min. object field (H x V) | 126 mm × 90 mm | 108 mm × 80 mm | 106 mm × 78 mm | 87 mm × 63 mm | 47 mm × 35 mm | 81 × 60 mm |
| Field of view (H × V) | ≈ 83° × 67° | ≈ 48° × 36° | ≈ 31° × 23° | ≈ 16° × 12° | ≈ 10° × 7.4° | ≈ 4.5° × 3.2° |
| Lens length | 100 mm | 100 mm | 100 mm | 100 mm | 117 mm | 142 mm |
| Lens | |
|---|---|
| TT 8 | Focus type: manual focus |
| TT 16 | Focus type: manual focus Focal length: 16 mm Measuring distance: > 200 mm Min. object field (H × V): 108 mm × 80 mm Field of view (H × V): ≈ 48° × 36° Lens length: 100 mm |
| TT 25 | Focus type: manual focus Focal length: 25 mm Measuring distance: > 262 mm Min. object field (H × V): 106 mm × 78 mm Field of view (H × V): ≈ 31° × 23° Lens length: 100 mm |
| TT 50 | Focus type: manual focus Focal length: 50 mm Measuring distance: > 424 mm Min. object field (H × V): 87 mm × 63 mm Field of view (H × V): ≈ 16° × 12° Lens length: 100 mm |
| TT 80 | Focus type: manual focus Focal length: 80 mm Measuring distance: > 428 mm Min. object field (H × V): 47 mm × 35 mm Field of view (H × V): ≈ 10° × 7.4° Lens length: 117 mm |
| TT 150 | Focus type: manual focus Focal length: 150 mm Measuring distance: > 1180 mm Min. object field (H × V): 81 mm × 60 mm Field of view (H × V): ≈ 4.5° × 3.2° Lens length: 142 mm |
Manual lenses for the LMK 6-30
There are various fixed focal length and fixed aperture Zeiss Interlock lenses available for the LMK 6-30. In addition, these lenses can be delivered either with a fixed or manually adjustable focus.
The range includes the following focal lengths: f' = 15 mm, 25 mm, 50 mm, and 150 mm.
Depending on customer requirements, these lenses can be defined prior to calibration and delivery by specifying the focus range and/or f-number.
When a manually focusable lens is used for a variable measuring distance, this is taken into account in the user software with extended factors for the current focus setting of the lens.
| Lens type | TT 15 | TT 25 | TT 50 | TT 100 |
|---|---|---|---|---|
| Focus type | manual focus | manual focus | manual focus | manual focus |
| Focal length | 15 mm | 25 mm | 50 mm | 100 mm |
| Measuring distance | > 231 mm | > 262 mm | > 450 mm | > 440 mm |
| Min. object field (H × V) | 194 mm × 144 mm | 122 mm × 91 mm | 145 mm × 109 mm | 46 mm × 34 mm |
| Field of view (H × V) | ≈ 72° × 57° | ≈ 47° × 36° | ≈ 24° × 18° | ≈ 13° × 10° |
| Lens length | 128 mm | 151 mm | 125 mm | 258 mm |
| Lens | |
|---|---|
| TT 15 | Focus type: manual focus |
| TT 25 | Focus type: manual focus Focal length: 25 mm Measuring distance: > 262 mm Min. object field (H × V): 122 mm × 91 mm Field of view (H × V): ≈ 47° × 36° Lens length: 151 mm |
| TT 50 | Focus type: manual focus Focal length: 50 mm Measuring distance: > 450 mm Min. object field (H × V): 145 mm × 109 mm Field of view (H × V): ≈ 24° × 18° Lens length: 125 mm |
| TT 100 | Focus type: manual focus Focal length: 100 mm Measuring distance: > 440 mm Min. object field (H × V): 46 mm × 34 mm Field of view (H × V): ≈ 13° × 10° Lens length: 258 mm |
